Thermal Design
We offer specialized thermal design services for various heat exchangers, including shell and tube, air-cooled, and coil-type configurations, using HTRI (Heat Transfer Research, Inc.) software to ensure optimal thermal performance, energy efficiency, and full compliance with international standards.
We perform precise sizing and rating calculations considering process conditions, thermal duty, and allowable pressure drops, evaluating heat transfer coefficients, flow regimes, fouling factors, and pressure loss to design efficient and reliable exchangers, following globally recognized standards such as TEMA, ASME Section VIII, API 660, and PD 5500 to ensure safety, durability, and performance in critical applications.
We perform precise sizing and rating calculations considering process conditions, thermal duty, and allowable pressure drops, evaluating heat transfer coefficients, flow regimes, fouling factors, and pressure loss to design efficient and reliable exchangers, following globally recognized standards such as TEMA, ASME Section VIII, API 660, and PD 5500 to ensure safety, durability, and performance in critical applications.
SERVICES
- Thermal Design & Sizing
- Accurate sizing based on process requirements and thermal duty
- Heat transfer Coefficient Evalution
- Shell-shield and tube-sheild Coefficient calculation
- Pressure drop estimation and optimization
- Performance Optimization

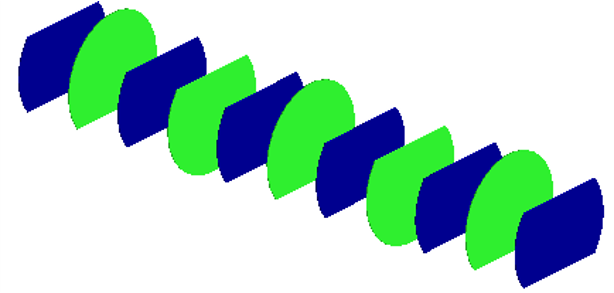

- Enhanced performance using baffle design, finned tubes (for ACHE), and flow control
- Minimization of pressure losses while maximizing heat transfer
- Thermal Rating & Revamp Studies
- Evaluation of existing exchanger performance under new process conditions
- Life extension and thermal upgrade recommendations
- Fouling & Flow Regime Consideration
- Design considering fouling resistance, laminar/turbulent flow, and viscosity effects
- Thermal Report & Documentation
- Complete thermal design report with performance summaries, temperature profiles, and pressure drop charts
- TEMA data sheets and HTRI output files for third-party or client approval
- Integration with Mechanical Design
- Coordination with pressure vessel and mechanical design teams

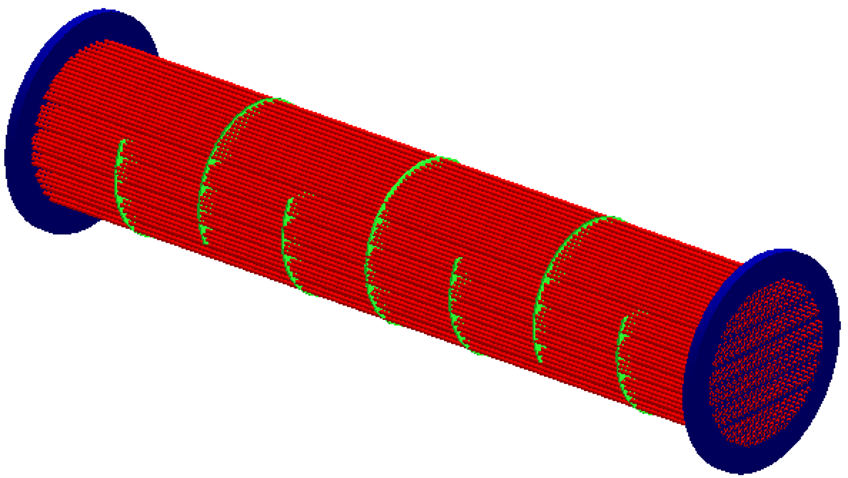

- Support in selecting tube layout, pitch, baffle spacing, and expansion joints

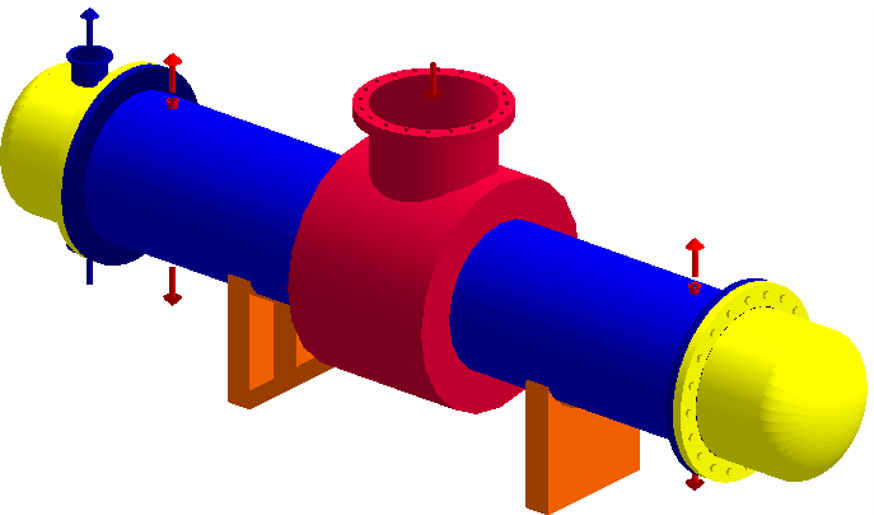

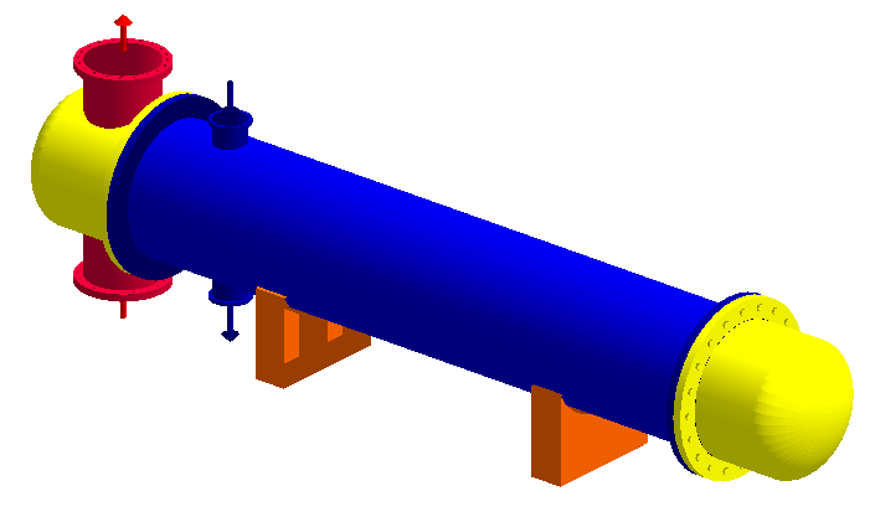

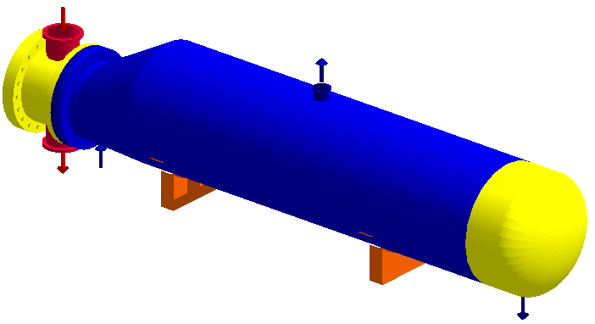

- Shell & Tube Heat Exchangers (Fixed tubesheet, U-tube, floating head, and kettle type)

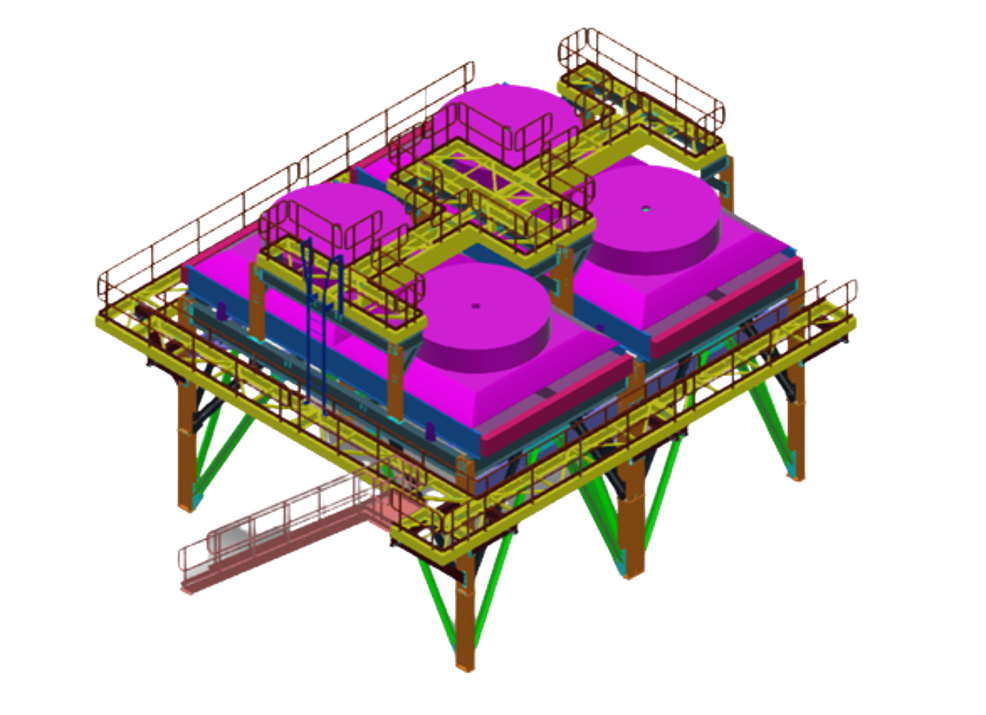

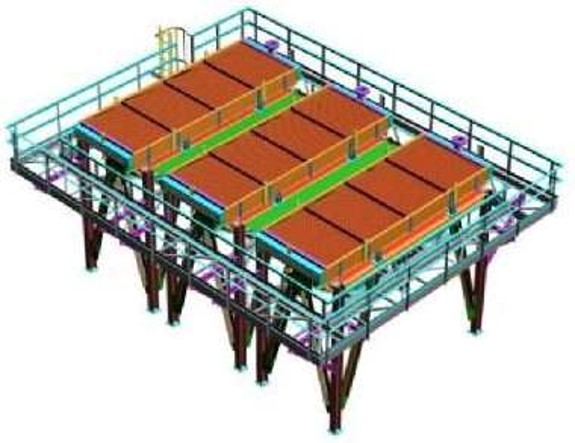

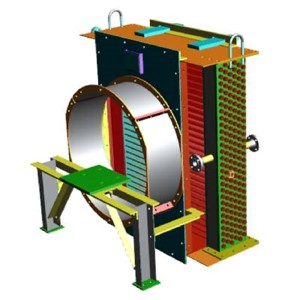

- Air-Cooled Heat Exchangers (ACHE) (Forced draft, induced draft)
- Coil-Type Heat Exchangers (Helical and spiral configurations)
- TEMA (Tubular Exchanger Manufacturers Association)
- ASME Section VIII Div 1 & 2 (For pressure-integrated thermal design)
- API 660 (For oil and gas industry heat exchangers)
- PD 5500 (For pressure equipment as per UK standards)
- HTRI Xchanger Suite for rating, simulation, and optimization
- Custom thermal analysis tools for preliminary design and validation
